High Speed BTB
read more

High Speed BTB

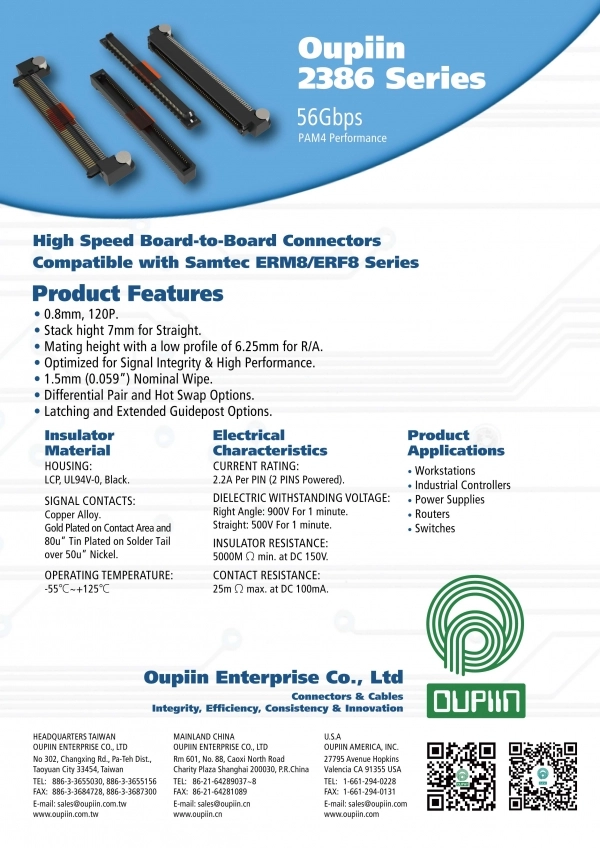

56+GbpsPam4

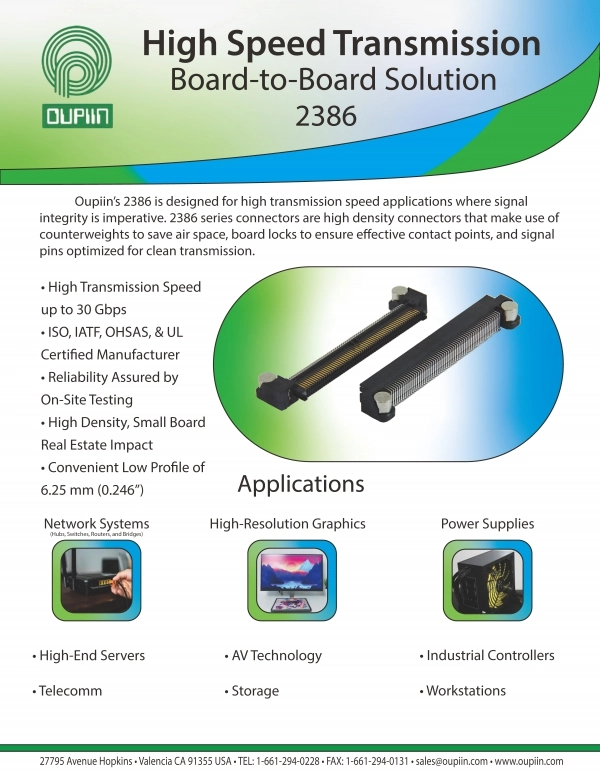

OUPIIN's latest 0.8mm Board To Board Connectors high speed connector with Low profile of 6.25mm (0.246") up to 120 Pin Count is adapted for high frequency signal transmission systems.
Support speed rates to 28+Gbps @-3dB

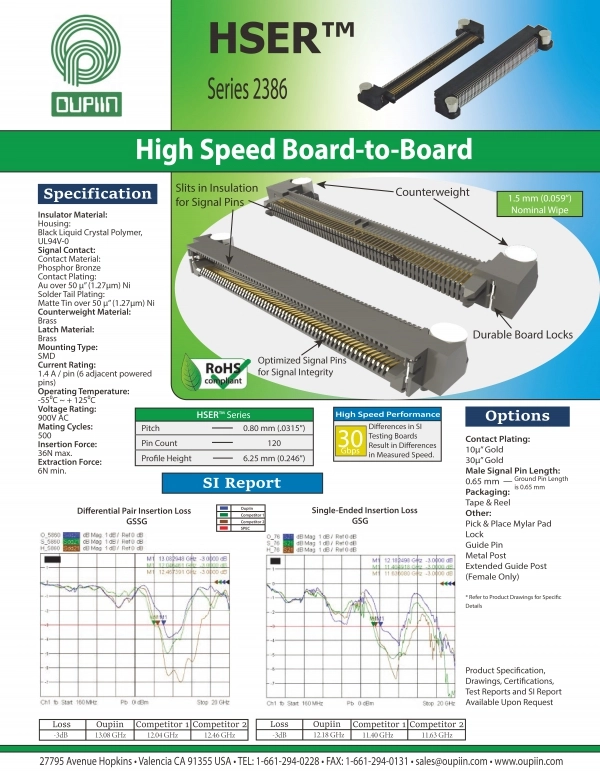

HSER™ 28+Gbps HSER™ 28+Gbps 28+Gbps Data Solution

HSER™ 28+Gbps 2386 Series

2386-12

Part No.

2386-12

Desc.

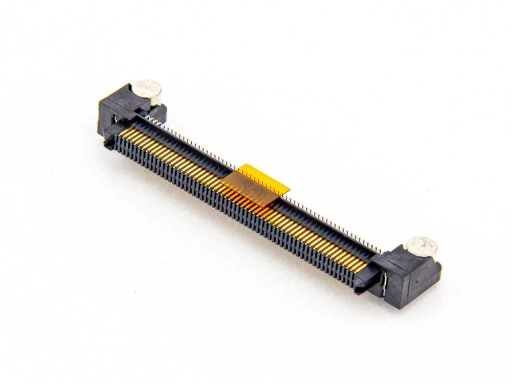

0.8mm Male Right Angle Type
2386-22

Part No.

2386-22

Desc.

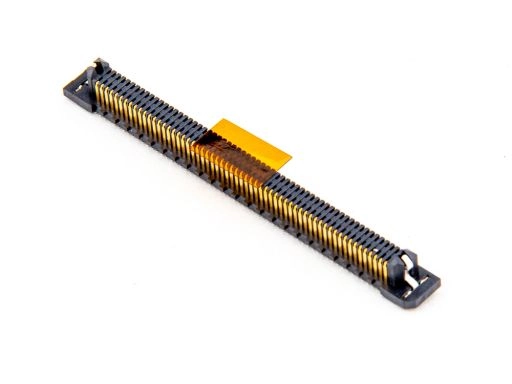

0.8mm Female Straight Type
2386-32

Part No.

2386-32

Desc.

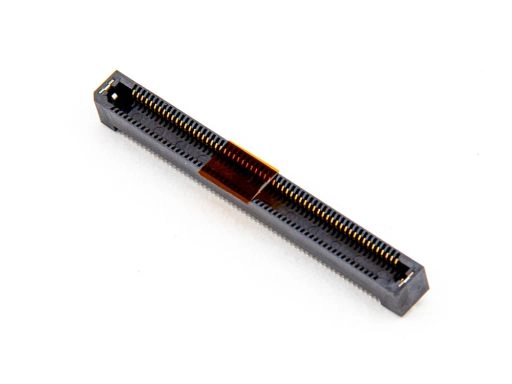

0.8mm Male Straight Type
2386-42

Part No.

2386-42

Desc.

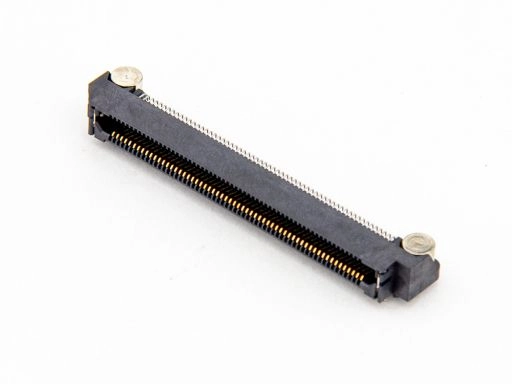

0.8mm Female Right Angle Type
