Busbar Clip Power
read more

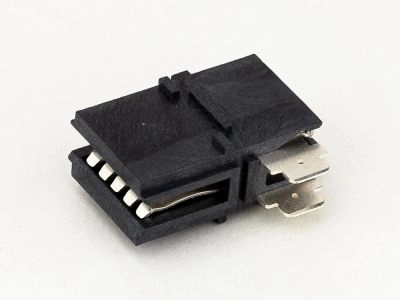

Busbar Clip Power 200Amp

Busbar Clip Power Connector
  • Multiple independent points of contact
  • Silver plating for lower resistance
  • Low-voltage drop affords minimal heat generation
  • Screw mount and solder type available
  • Blind mate
  • Hot plugged 180A at 1.3V
  • Mates with busbar thickness 3.0+/-0.10mm

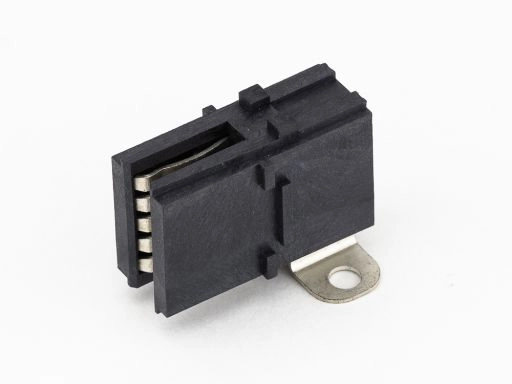

180Amp Screw mount Type 9192 Series

9192-02xN5A

Part No.

9192-02xN5A

Desc.

BusBar Clip Screw mount
