Hi Power Card Edge
read more

High Power Card Edge

  • 25% Higher Linear Current Density
  • Up to 3,000W at 12V with a Multi-Contact Design
  • 23% Size Reduction Compared to Traditional Card-Edge Connectors
  • High-Airflow Design for Enhanced Heat Dissipation and Efficient System Cooling
  • Mid-Mount Design with a 5.335 mm Recess Height

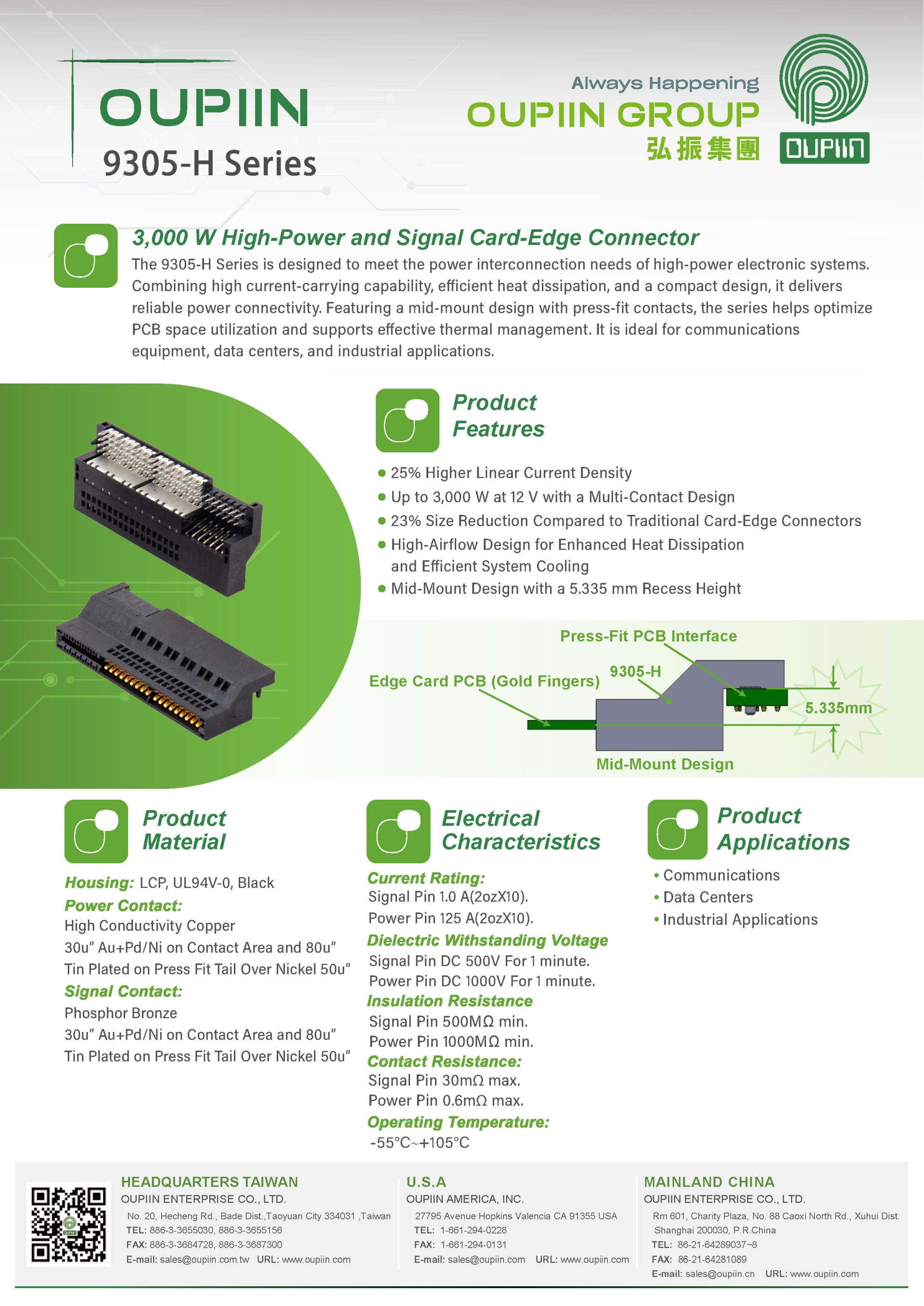

9305-H 3000W

125Amp 3000W Power+Signal Card Edge 9305-H Series

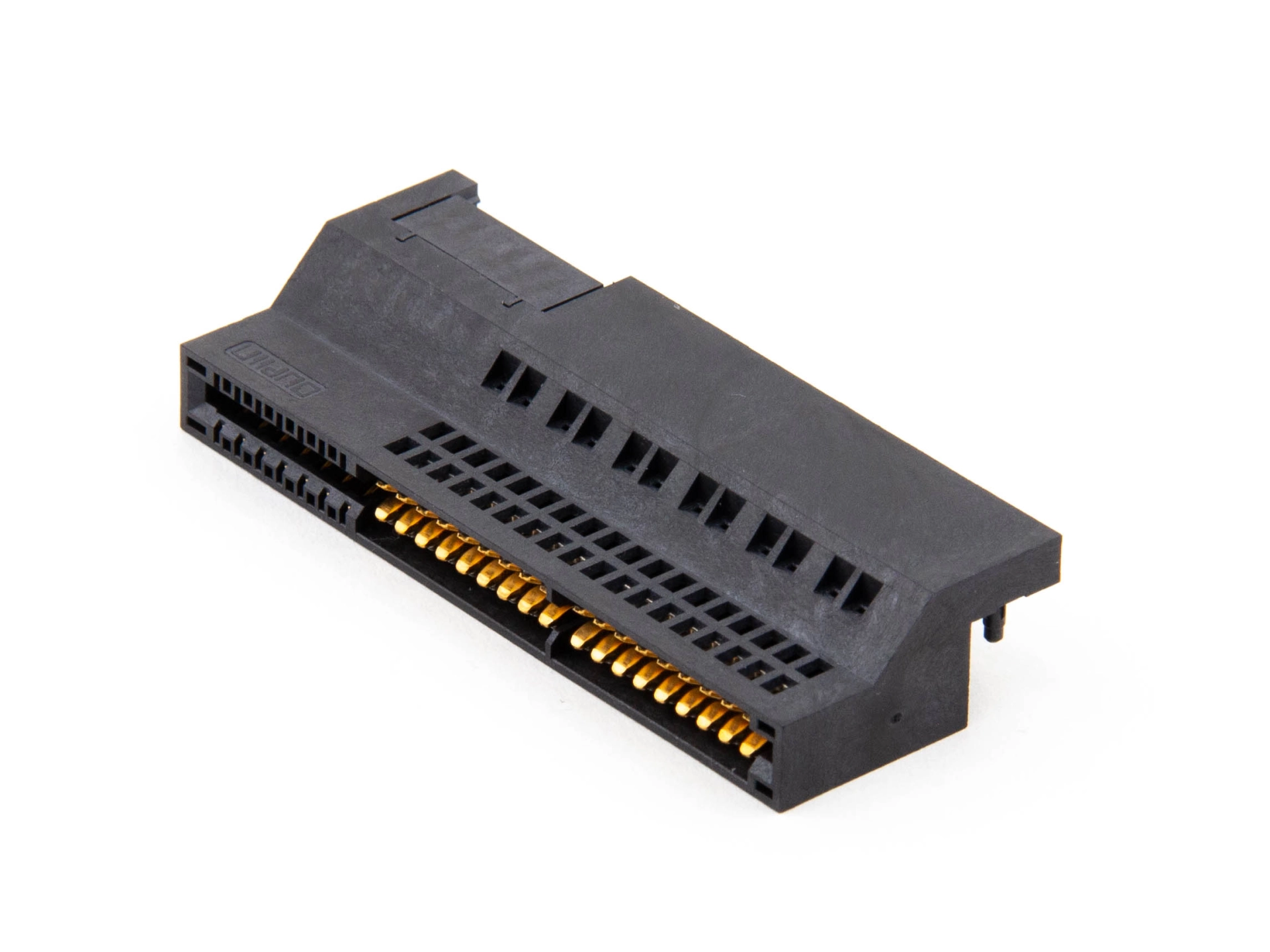

9305-H4P12S14B7PAA01

Part No.

9305-H4P12S14B7PAA01

Desc.

3000W Power + Signal Card Edge Connector Mid-Mount Type R/angle Type
