Wire To Board Connectors 3.0mm to 6.35mm,Wires

Wire To Board Connectors 3.0mm to 6.35mm,Wires

Fully compatible with Molex Mini-Fit Jr 4.20mm
Various color option, UL 94v-0 or UL 94v-2
Snap-in post for excellent retention to PCB
Work with wire 16WG to 28AWG
Current rating 6A to 9A
Locking feature to ensure mating

4.2mm 4973 Series

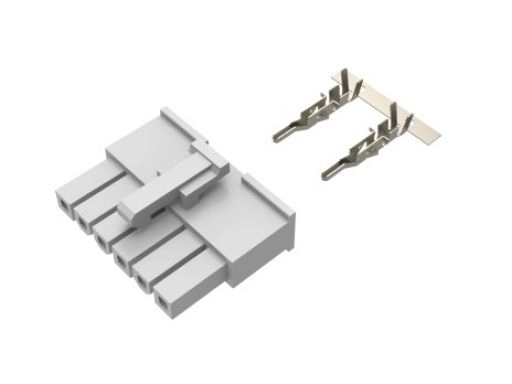

4973-1XxxFHB and 4973-PIN-M-5K-Tx

Part No.

4973-1XxxFHB and 4973-PIN-M-5K-Tx

Desc.

Housing 4.20mm Single Female Various color option Locking feature 2 to 12pin,Terminal Tin 16AWG to 28AWG

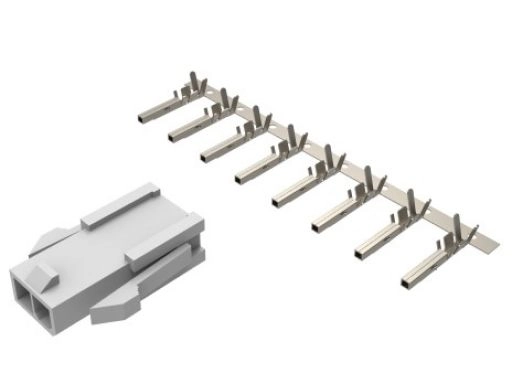

4973-1XxxMHB and 4973-PIN-F-5K-Tx

Part No.

4973-1XxxMHB and 4973-PIN-F-5K-Tx

Desc.

Housing 4.20mm Single Male Various color option Locking feature 2 to 12pin, Terminal Tin 16AWG to 28AWG

4973-1XxxTRB(-V0)

Part No.

4973-1XxxTRB(-V0)

Desc.

Wafer 4.20mm Single DIP RA Tin Snap-in post Mounting ear option 2 to 12pin UL94-v0 or UL94-v2

4973-1XxxTSB

Part No.

4973-1XxxTSB

Desc.

Wafer 4.20mm Single DIP STR Tin Snap-in post 2 to 12pin

4973-PIN-M-5K-Tx

Part No.

4973-PIN-M-5K-Tx

Desc.

Male Terminal for 4973 series 18~24AWG Female Housing

4973-PIN-F-5K-Tx

Part No.

4973-PIN-F-5K-Tx

Desc.

Female Terminal for 4973 series 18~24AWG Male Housing

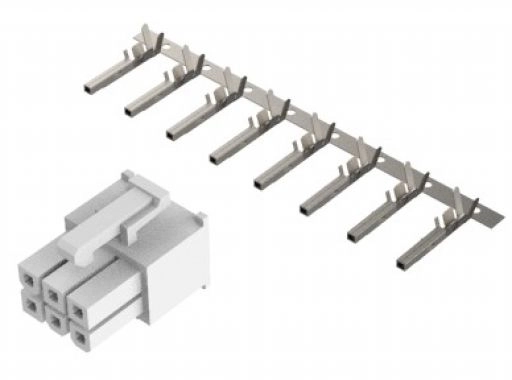

4973-xxFHB and 4973-PIN-M-5K-Tx

Part No.

4973-xxFHB and 4973-PIN-M-5K-Tx

Desc.

Housing 4.20mm Dual Female Locking feature 2 to 24pin UL94v-2, Terminal Tin 16AWG to 28AWG

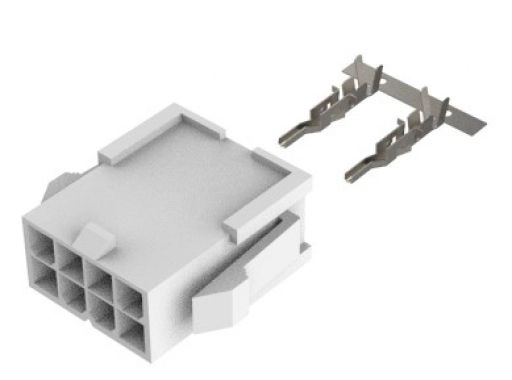

4973-xxMHB and 4973-PIN-F-5K-Tx

Part No.

4973-xxMHB and 4973-PIN-F-5K-Tx

Desc.

Housing 4.20mm Dual Male Various color option Locking feature 2 to 24pin UL94v-2, Terminal Tin 16AWG to 28AWG

4973-xxTRB(-V0)

Part No.

4973-xxTRB(-V0)

Desc.

Wafer 4.20mm Dual DIP RA Tin Snap-in post Mounting ear 2 to 24pin UL94v-0 or UL94v-2

4973-xxTRN1B

Part No.

4973-xxTRN1B

Desc.

Wafer 4.20mm Dual DIP RA Tin No post No mounting ear 2 to 24pin UL94v-2

4973-xxTRNB(-V0)

Part No.

4973-xxTRNB(-V0)

Desc.

Wafer 4.20mm Dual DIP RA Tin Snap-in post No mounting ear 2 to 24pin UL94v-0 or UL94v-2

4973-xxTSB

Part No.

4973-xxTSB

Desc.

Wafer 4.20mm Dual DIP STR Tin 2 to 24pin

4973-xxTSPB(-V0)

Part No.

4973-xxTSPB(-V0)

Desc.

Wafer 4.20mm Dual DIP STR Tin Snap-in post 2 to 24pin UL94v-0 or UL94v-2
