Pluggable I/O
read more

Pluggable I/O

  • Transmission rate up to 25 Gbps
  • Connector 20Pin
  • Cage 1XN PORTS & 2XN PORTS available
  • Cage available with heat sinks and light pipes

SFP28 Connector & Cage 8957 Series

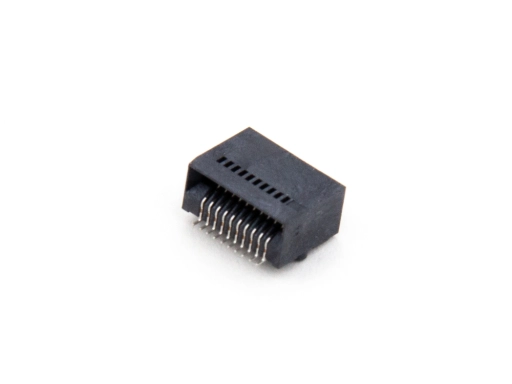

8957-E20CxxDPT

Part No.

8957-E20CxxDPT

Desc.

SFP28 Connector ,20PIN

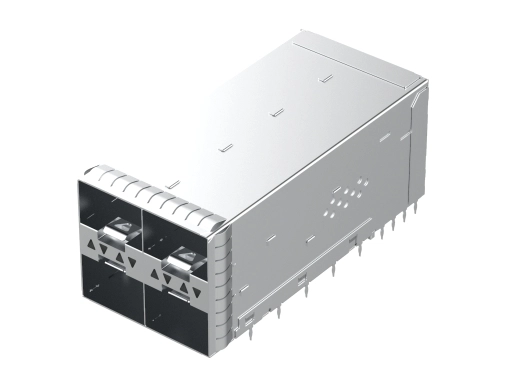

8957-E2X2C30PPxA

Part No.

8957-E2X2C30PPxA

Desc.

SFP28 Cage, 2X2 PORTS, Press fit type , Spring Plus
