Connectors, IDC Cable Assembly
read more

Connectors, IDC Cable Assembly

Cable Assembly

Cable Assembly

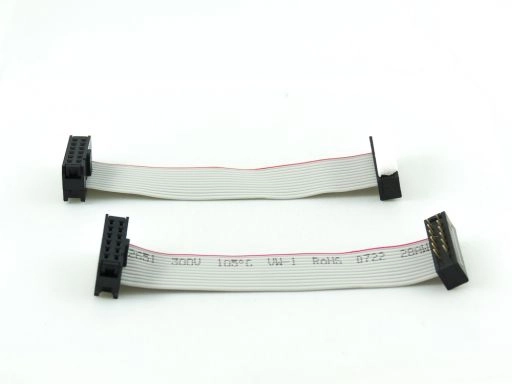

1001-12G00B2+6011-12C00B1X8CMB-A1+D1

Part No.

1001-12G00B2+6011-12C00B1X8CMB-A1+D1

Desc.

Both side with the different connectors

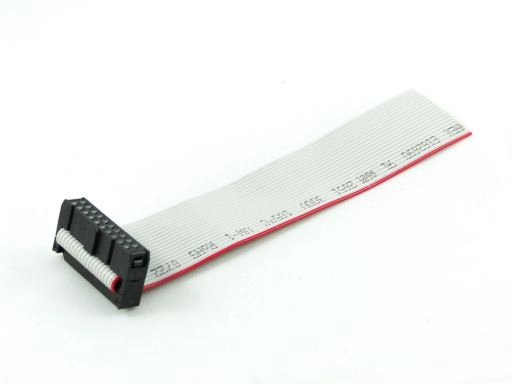

1001-20C00B1X61CMB-AS2

Part No.

1001-20C00B1X61CMB-AS2

Desc.

Only one side with connector

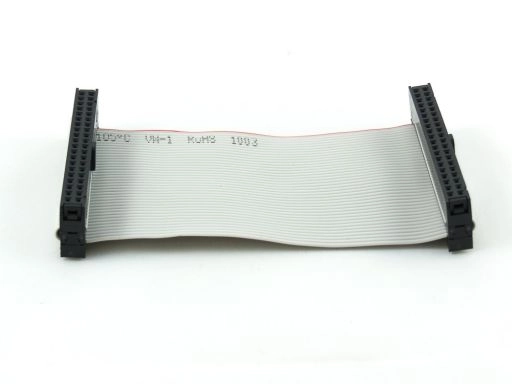

1001-40C00B1-2X8.8CMB-AS4

Part No.

1001-40C00B1-2X8.8CMB-AS4

Desc.

Both side with the same IDC Socket

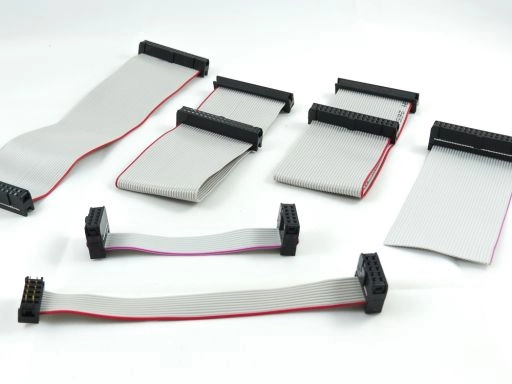

Customs Flat Cable Assembly

Part No.

Customs Flat Cable Assembly

Desc.

Customs Flat Cable Assembly
