Comply with OCP M-CRPS specification. High-Power Capability: Supports up to 4500W (4 layers and 6oz copper for each layer)Multi-Contact Power Design: Enhances conductivity and reduces contact resistanceStable Signal Structure: Recessed terminal design prevents damage during matingEfficient Thermal Performance: Enhanced cooling design for superior heat dissipation.  High Assembly Accuracy: PIP-compatible design ensures precise PCB alignmen

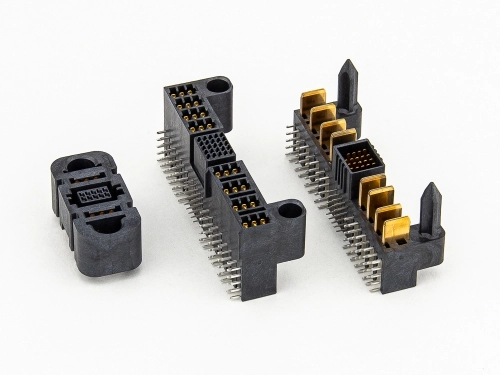

The Oupiin 9303-C Series PwrSword® Ultra HD Connector is a versatile, high-current connector ideal for applications demanding efficient power distribution with effective thermal management.High Power & Signal Capabilities: Supports power up to 75A (DC) for high-power applications, 45A (AC) for lower power needs, and signal pin currents up to 1.8A.Configurable Design: The number and placement of power and signal contacts can be tailored to customer specifications.Thermal Efficiency: The low profile (9.60mm above the board) allows improved airflow, enhancing cooling, and is ideal for compact systems like 1U power supplies.Enhanced Contact Stability: Features double spring contacts on signal terminals for reliable connectivity.     Housing & Connection Types: It has ventilated housing, an anti-return pin design, and solder and press-fit options.

PwrFULL® can handle up to 100A per pin.The high-ventilation structure design maximizes heat dissipation, enabling efficient system cooling.Halogen-free materials to meet environmental requirements.Currently available in vertical receptacles and right-angle plugs. Future development includes right-angle receptacles, suitable for parallel board and backplane applications.10 contact points ensure long-term reliability.Extremely low resistance and low voltage drop.

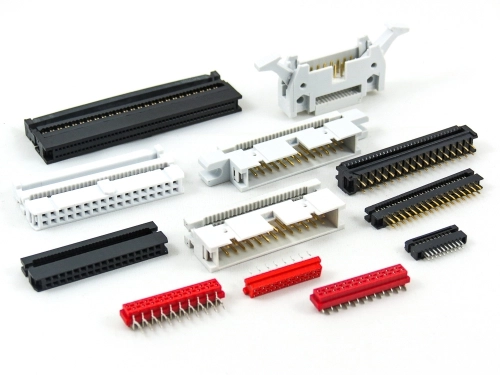

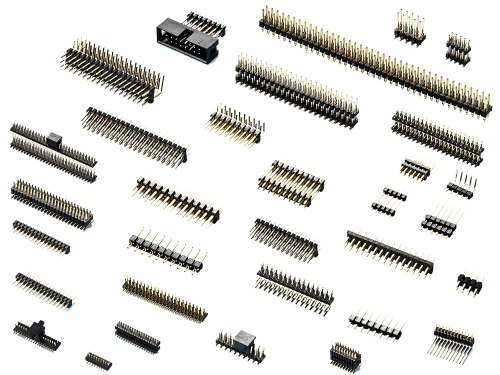

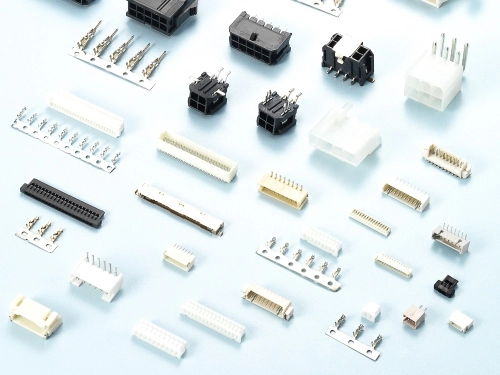

PCB Header  Wire to Board ConnectorsCompact design with 2.2 mm high density pitchBuckle design to increase the locking ability of the male and female connectors to avoid product decoupling.The plastic body is designed to reduce deformationBoard fixation screws for secure connection to PCB

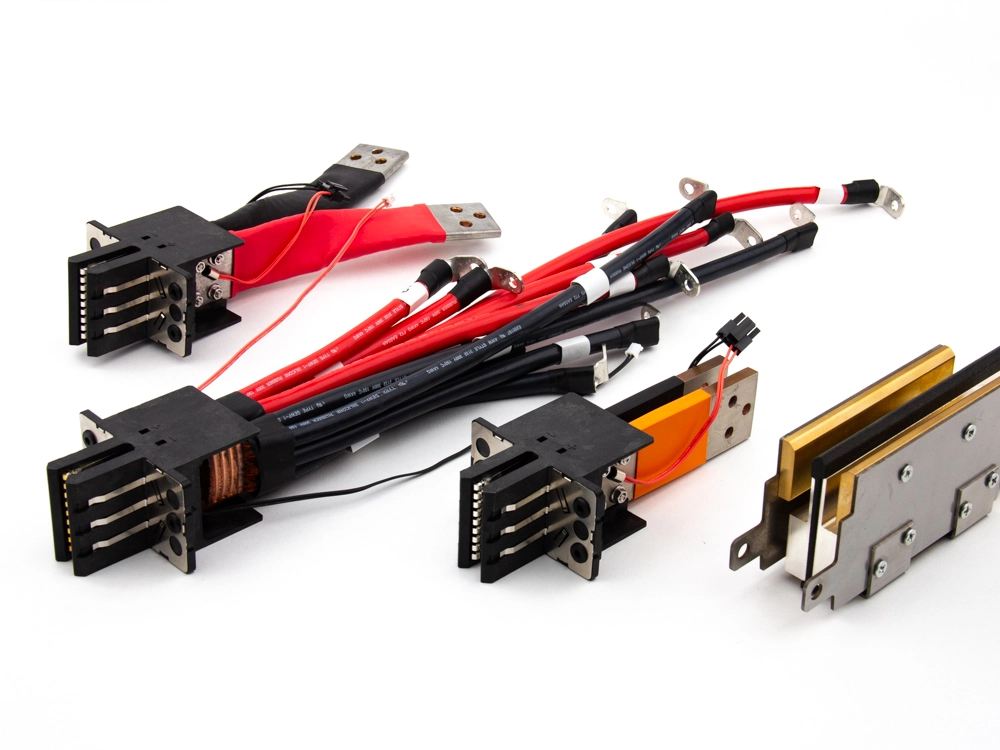

High Power: Supports OCP ORV3, 48 V high current.Thermistor Integration:    Real-time connector temperature monitoringPolarity Color Coding: Red (+), Black (–) for easy identificationMultiple Configurations: Cable, braided, and solid busbar versionsCustomization Options: Wire type, AWG, length, busbar dimensions
