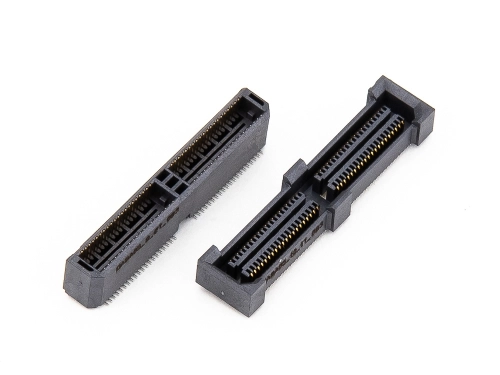

50Gbps Pam4High Speed Self Mating Mezzanine ConnectorPin Spacing: 0.5mmStack Height: 4mmOrientation: Vertical HermaphroditicCompliant: PAM4

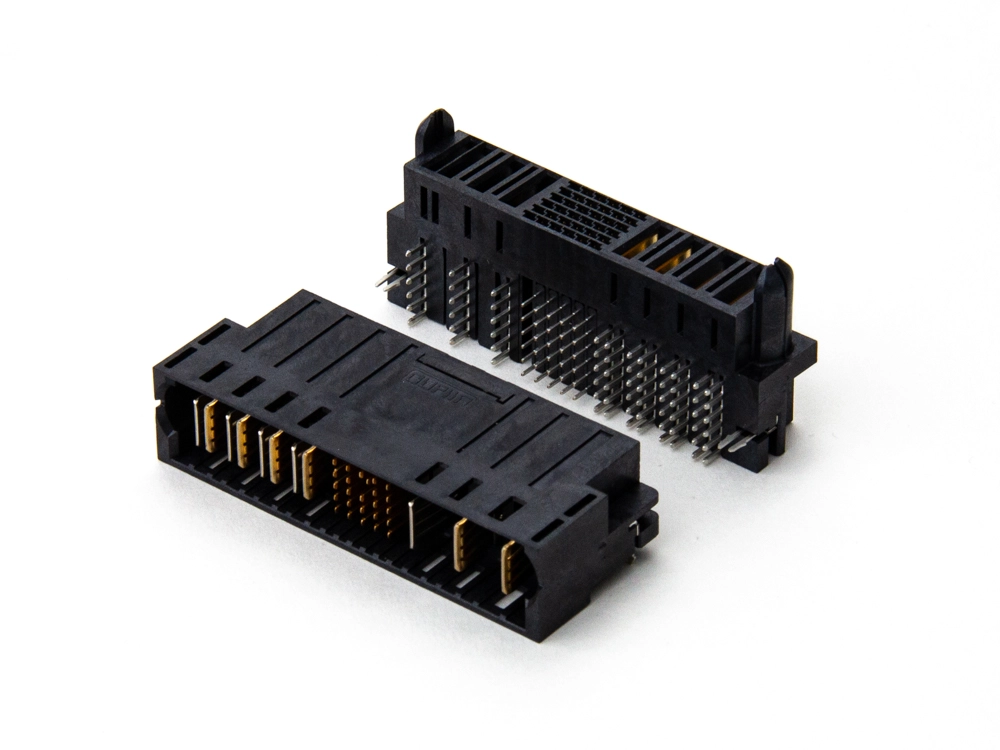

The Oupiin 9303-C Series PwrSword® Ultra HD Connector is a versatile, high-current connector ideal for applications demanding efficient power distribution with effective thermal management.High Power & Signal Capabilities: Supports power up to 75A (DC) for high-power applications, 45A (AC) for lower power needs, and signal pin currents up to 1.8A.Configurable Design: The number and placement of power and signal contacts can be tailored to customer specifications.Thermal Efficiency: The low profile (9.60mm above the board) allows improved airflow, enhancing cooling, and is ideal for compact systems like 1U power supplies.Enhanced Contact Stability: Features double spring contacts on signal terminals for reliable connectivity.     Housing & Connection Types: It has ventilated housing, an anti-return pin design, and solder and press-fit options.

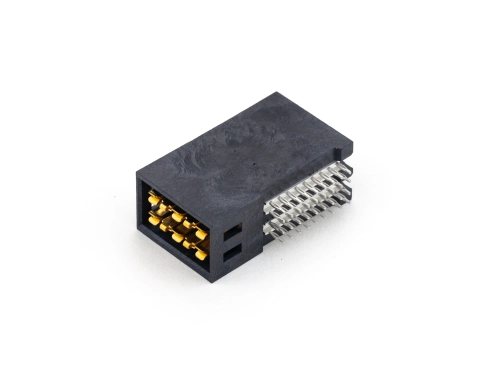

  High power capability up to 100A per pin; low power up to 65A per pin, ideal for demanding current requirements  Ultra-low board height of 11.40mm, perfectly suited for 1U/2U power supplies or distribution systems  High-ventilation structure design enhances heat dissipation, ensuring stable system operation  Halogen-free materials meeting international environmental standards  Wide operating temperature range: -40℃ to +125℃, supporting extreme environments  Available in right-angle male and female connectors; straight versions are under development for coplanar and backplane applications  Customizable number and placement of power and signal contacts to meet specific customer needs  Offers both solder and press-fit board mounting options for flexible implementation

Supports data rates up to 800Gb/s(8 lanes that support 112Gb/s PAM4)Available ganged (1XN) and stacked(2XN) configurationsWith EMI spring for enhanced shielding and stable signal performance. Cage offers light pipe optionsMeet SFF or MSA spec.

The Fakra Connector is a type of connector commonly used in automotive and telecommunications fields. It is a specific type of RF (Radio Frequency) connector frequently employed in applications such as automotive electronics systems, satellite navigation, in-car entertainment systems, wireless communications, and vehicle diagnostic equipment. Follows DIN 72594-1 (FAKRA specifications)Comply with USCAR and FAKRA standards Association standards can be compatible with other factory-standard productsA full range of standard 14 keys and color distinction can prevent mismatchStrengthen positioning design, avoid center offsetPush-on latch structure for close integrationThe applicable cable is RG174/ATWith various length options (8M~10M), suitable for multiple application markets
